Scientific Injection Molding Benefits

What is Scientific Injection Molding?

Not familiar with Scientific Injection Molding?

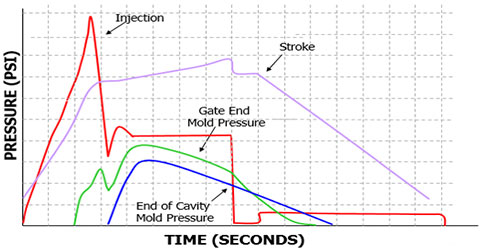

Scientific Injection Molding (SIM), also known as Decoupled Injection Molding, is a systematic approach to molding in which the fill, pack and hold stages are treated separately to minimize fluctuations while improving product consistency.

Unlike traditional injection molding, SIM relies on controlled, data-driven processes. It accepts the scientific principle of plastic behavior and combines them with known variables we can control to reduce cycle times and increase machine efficiency.

Factors Involved in Scientific Molding

Types of Materials

Scientific molding uses a wide range of materials, each chosen based on specific requirements and desired final product characteristics. These include the following:

• Thermoplastics like polyethylene (PE), polypropylene (PP) and polystyrene (PS) are famed for their excellent recyclability and flowability and are commonly used in scientific molding processes.
• Thermosetting Plastics (Thermosets) like epoxy resins, polyurethane (PU) and bakelit offer exceptional heat resistance and dimensional stability, making them ideal for applications where exposure to high temperatures is a constant factor.

Material Characteristics

Material properties such as melt temperature, melt flow rate, thermal conductivity and viscosity are critical factors in SIM. These properties affect how the material behaves during the molding process, which influences the final product’s quality and consistency.

With these considerations in mind, the choice of material is crucial to the success of scientific molding as it directly impacts the final product’s properties. Some material characteristics to consider include the following:

• Melt Flow Index (MFI): This measures a material’s flowability when melted, which is vital for filling complex molds evenly.
• Tensile Strength: Indicates a material’s ability to withstand pulling forces without breaking.
• Impact Strength: Reflects a material’s resistance to sudden impacts or shocks.
• Heat Resistance: Determines the material’s ability to withstand elevated temperatures without deforming or degrading.
• Chemical Compatibility: Ensures the material is suitable for the intended environment and will not react with surrounding substances.

Material Characterization

Before beginning the molding process, materials undergo thorough characterization. This involves testing and analyzing properties like molecular weight distribution, rheological behavior, and thermal properties, ensuring precise control and predictability during molding.

The following are reasons why material characterization is essential in scientific molding:

• Precise Material Selection: Material characterization enables engineers to select the most suitable polymer for a given application, considering characteristics like tensile strength, melt flow index and heat resistance.
• Optimal Processing Conditions: By studying rheological behavior, engineers can design precise injection profiles that ensure uniform mold filling, reducing defects and minimizing the need for post-processing.
• Consistency: Material characterization establishes a baseline for material properties, ensuring that each batch behaves consistently. This consistency is essential for producing uniform products across production runs.
• Predictability: Armed with detailed material data, engineers can predict how a material will behave under different processing conditions, allowing for accurate process design and optimization.
• Reduced Waste: Precise material characterization minimizes the likelihood of errors or defects, reducing material waste and saving costs.

Process Documentation

Accurate documentation is a fundamental aspect of scientific molding. It involves the meticulous record-keeping of all process parameters like temperature, pressure, cycle time and cooling rates to ensure repeatability and traceability in production.

Beyond continuously monitoring relevant process parameters, process documentation offers other invaluable benefits. For instance, adopting a data-driven approach supports ongoing process optimization, which helps manufacturers fine-tune their operations for improved efficiency and product quality over time.

Machine Calibration

In highly controlled processes like scientific molding, slight deviations can lead to defects or inconsistencies in the final products. To eliminate or minimize these deviations, injection molding machines are calibrated to maintain precision and consistency.

During calibration, engineers carefully set and continually monitor all production variables to ensure the machine operates within the specified parameters, minimizing the likelihood of deviations.

Once calibrated, the injection machine serves as a reliable workhorse, capable of precisely replicating the ideal conditions identified during the setup phase, ultimately contributing to the cost-effectiveness and reliability of the entire manufacturing process.

Role of Software in the Scientific Molding Process

The role of software in Scientific Injection Molding (SIM) is instrumental in elevating the precision, efficiency, and overall performance of the manufacturing process. Advanced software solutions help ensure the success of injection molding projects as they enable more precise control and quicker response to deviations, further improving the molding process:

• Real-time Data Analysis: Software continuously collects sensor data, including temperature, pressure, injection speed, and material flow. It promptly evaluates this data to monitor the ongoing process.
• Predictive Modeling: Beyond data analysis, these tools use advanced algorithms to anticipate potential process deviations, foreseeing issues before they cause defects or delays.
• Immediate Feedback and Control: Software detects deviations and instantly adjusts the process. For example, if temperature strays from the target, it modifies heating or cooling systems, maintaining consistency.
• Process Optimization: Simulation and modeling tools assist engineers in refining the process before production. They virtually test parameters and materials, reducing trial-and-error on the shop floor.
• Data Visualization: Software offers clear data visualization through charts, graphs, and dashboards, simplifying real-time monitoring and decision-making.
• Historical Data Analysis: SIM software stores historical data, which is valuable for trend analysis, process improvement, and quality assurance. Engineers use past performance to inform decisions.
• Remote Monitoring and Control: Many SIM software packages enable remote process oversight and adjustment, aiding troubleshooting and real-time modifications, even during off-hours.

Industries That Benefit from Scientific Molding

• Medical: Precision and reliability are paramount in producing medical devices and components.
• Automotive: Complex parts require consistent quality and structural integrity.
• Electronics: Tiny, intricate components demand precision and consistency.
• Consumer Products: Maintaining high-quality standards in consumer goods production.
• Aerospace: Critical components demand precision and reliability.
• Packaging: Efficient and precise molding is vital for cost-effective packaging solutions.

Telecommunications: Precision molding supports the production of high-performance equipment.
